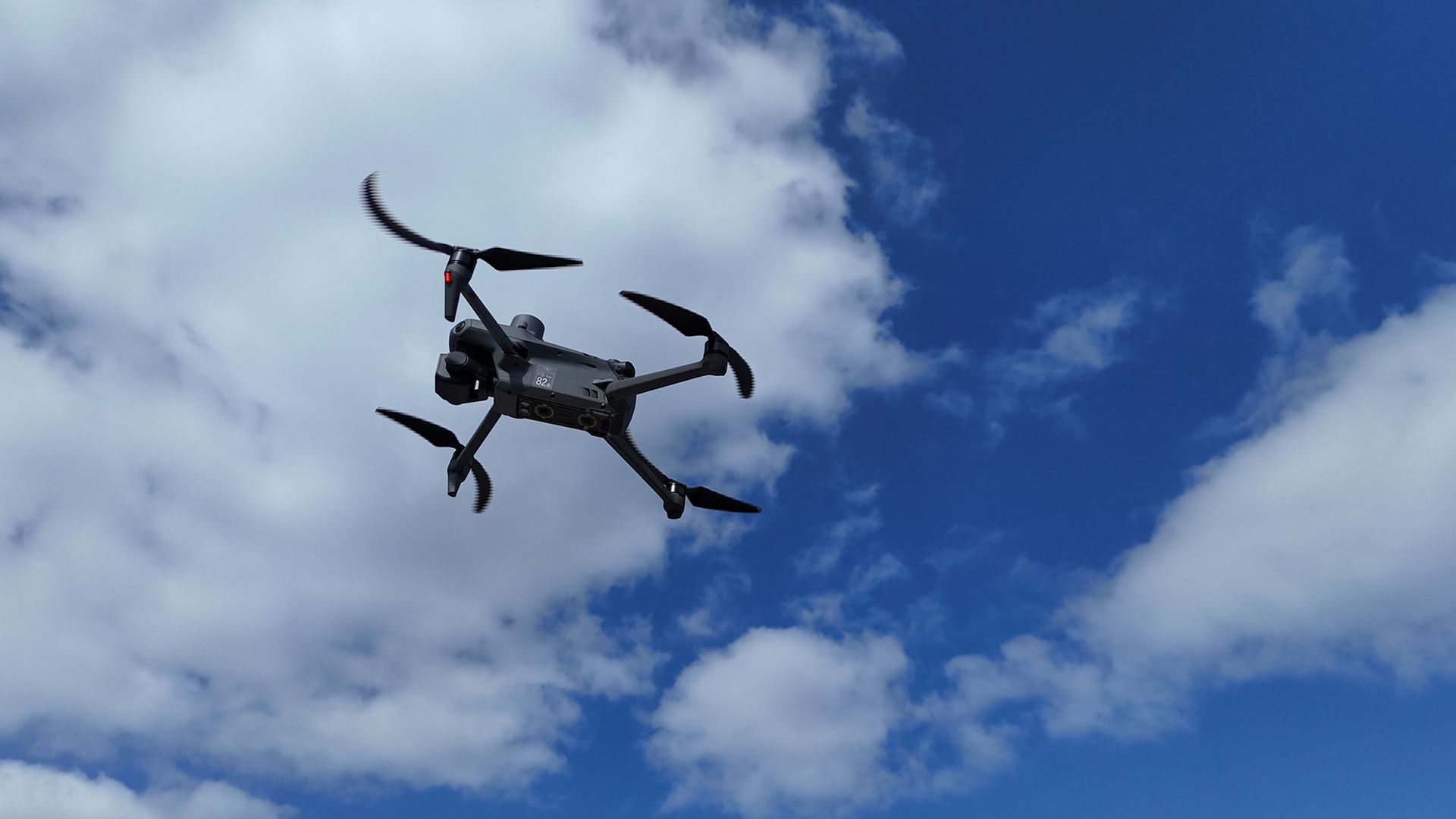

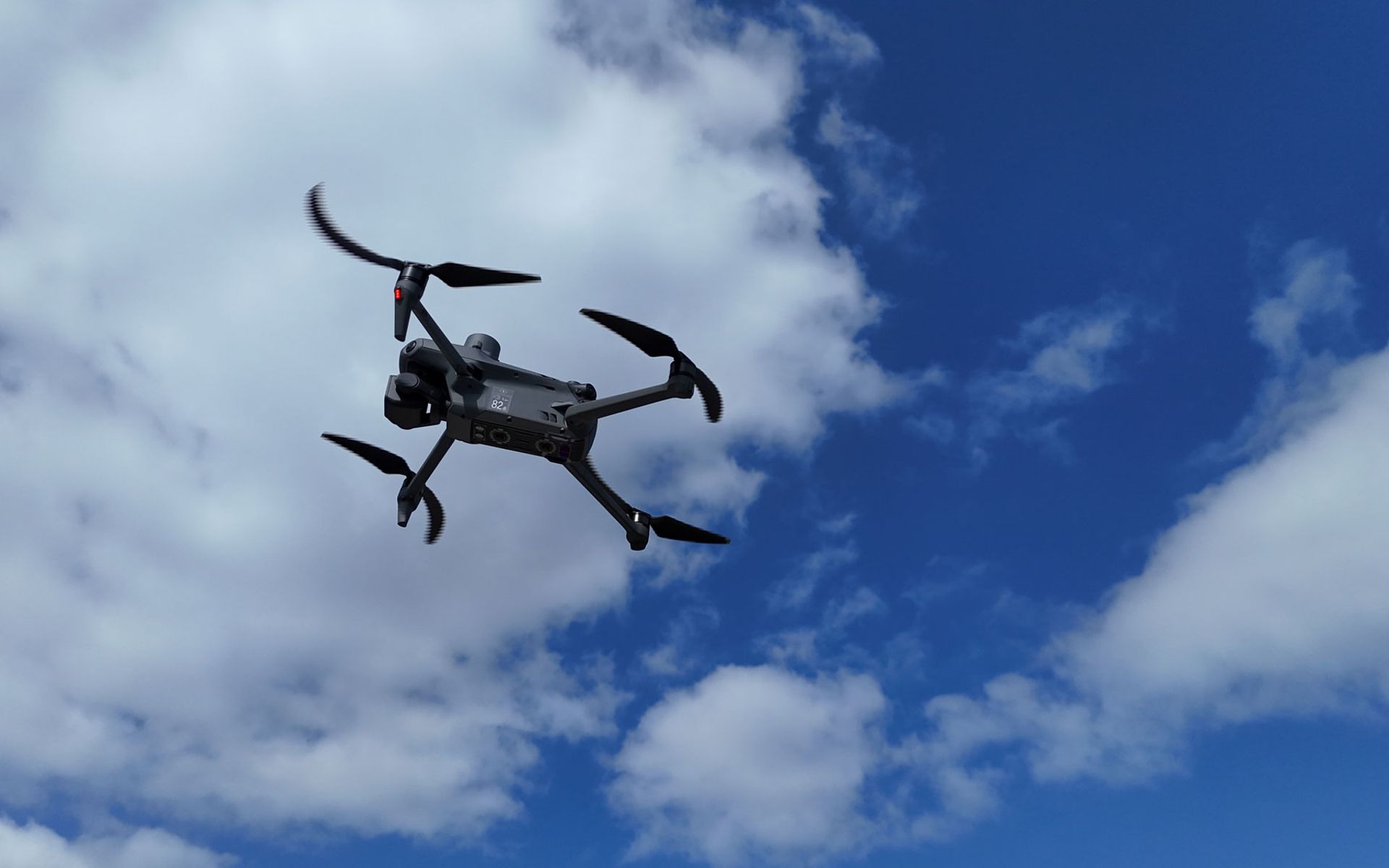

Drone in flight in slightly cloudy weather
DB Bahnbau Gruppe

Infrastructure. Digitalized on the fly.

Innovative as-built surveying and video recording using drone technology

In today's construction planning, precise as-built surveys and the visualization of the data obtained are crucial for the success of projects.

With a focus on the advancing use of Building Information Modeling (BIM), we offer innovative as-built surveys and visualizations by drone.

Thanks to state-of-the-art drone technology, we can create precise 3D point cloud models. This involves taking high-resolution images, which are processed into detailed models using specialized software.

These models support both complex analyses and visualizations and are accessible via an intuitive web application.

We also offer high-resolution video recordings by drone on request.

To ensure legally compliant and safe operations, drone operations are organized centrally within the Deutsche Bahn AG. Therefore, we have set up a competence center within the DB Bahnbau Gruppe, which coordinates approvals and flight planning with the Deutsche Bahn AG. This enables drone operations to be managed efficiently and 3D point cloud models and video recordings to be provided quickly.

Our contacts will be happy to assist you with as-built surveys and visualization.

Picture gallery: Drone Technology

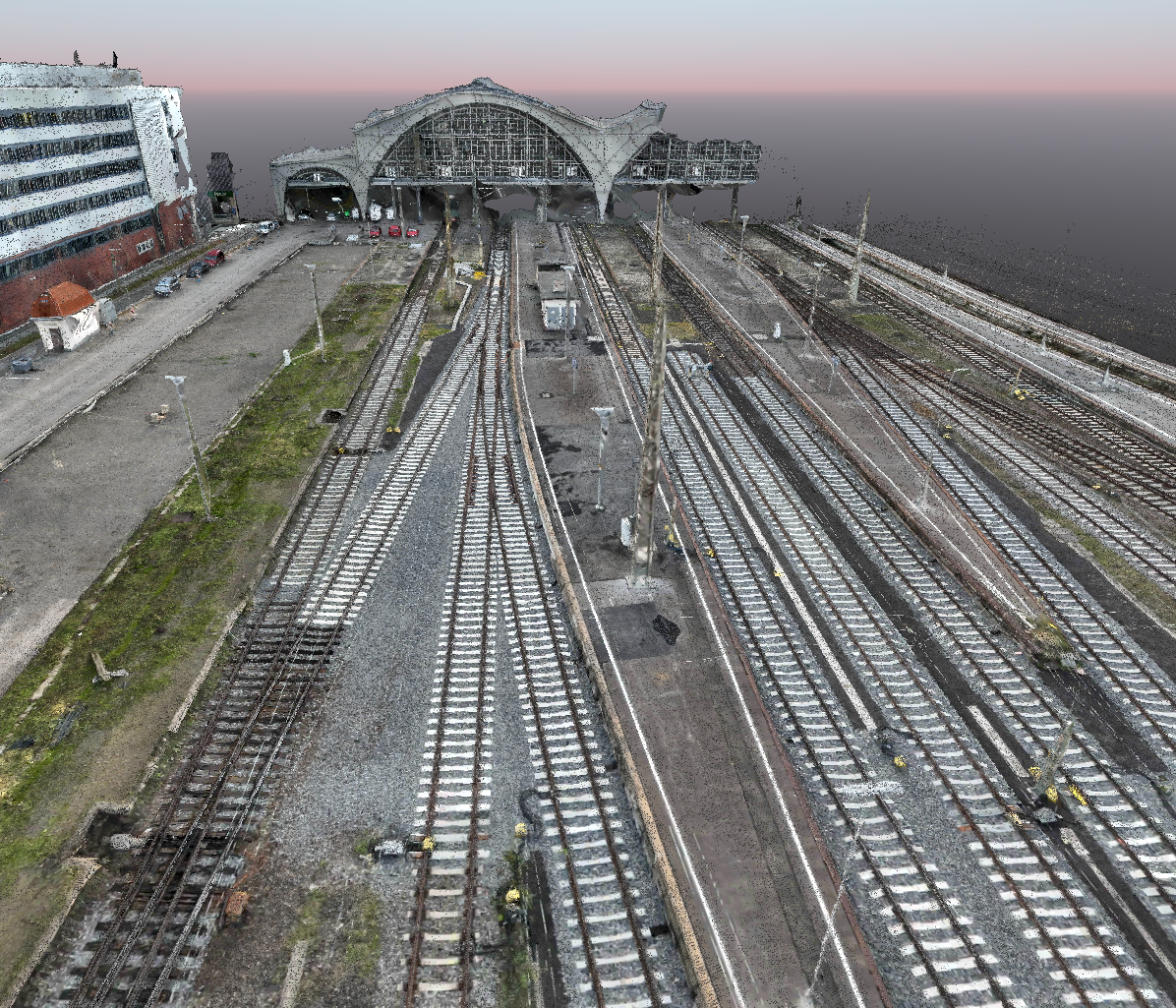

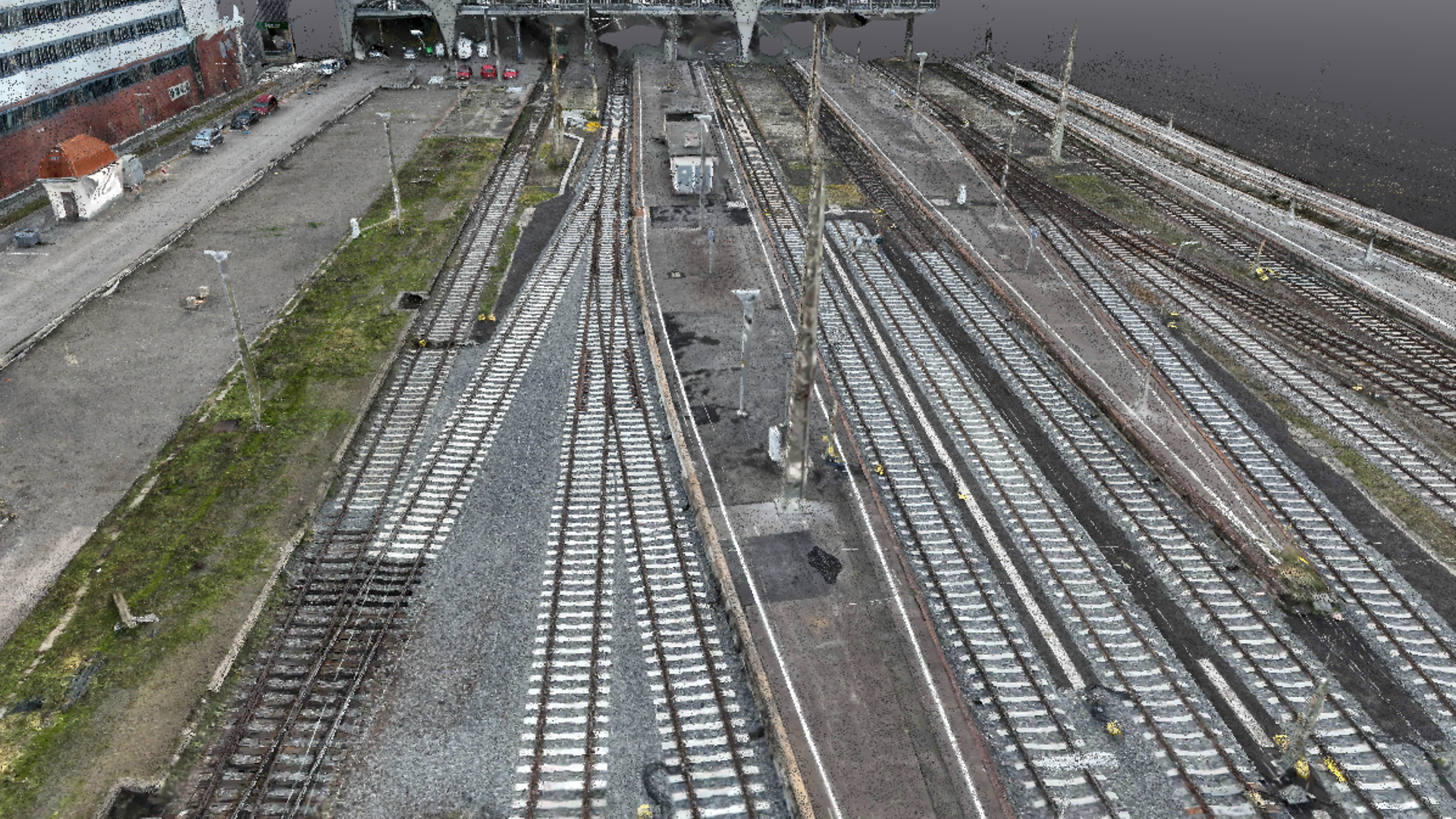

  • 3D point cloud of tracks in Leipzig Central Station building

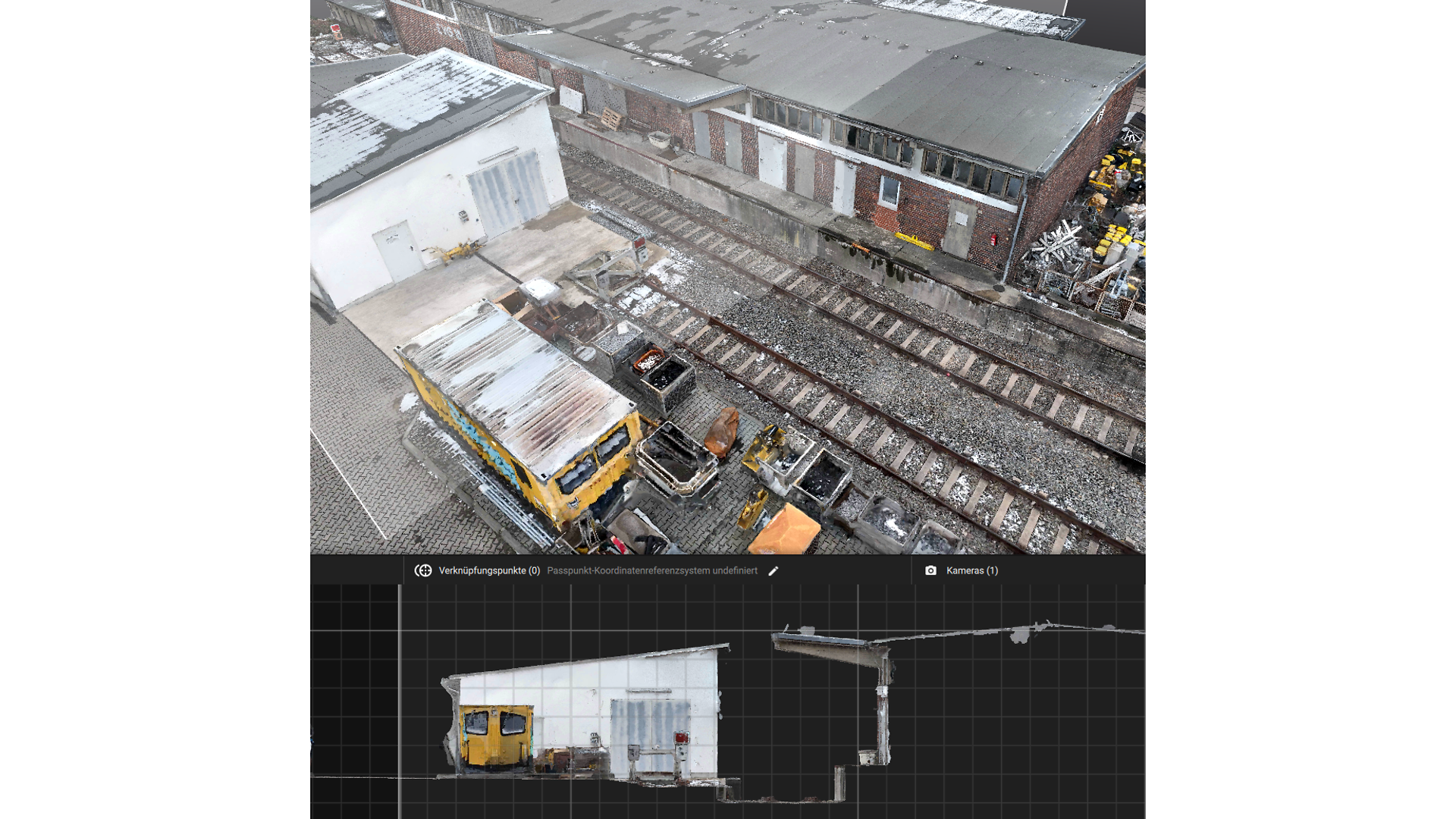

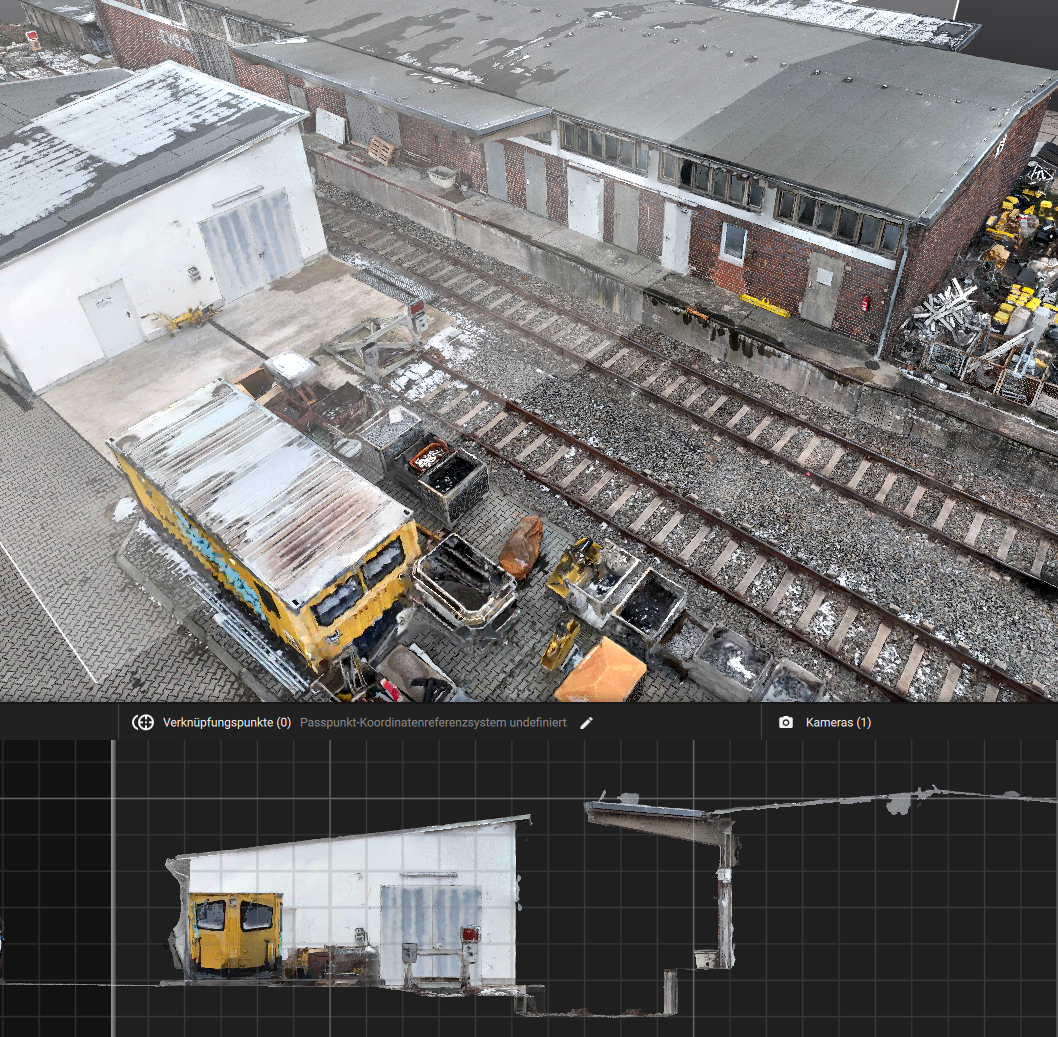

  • 3D representation of an area with track, work hall and container from a bird's eye view and frontal view

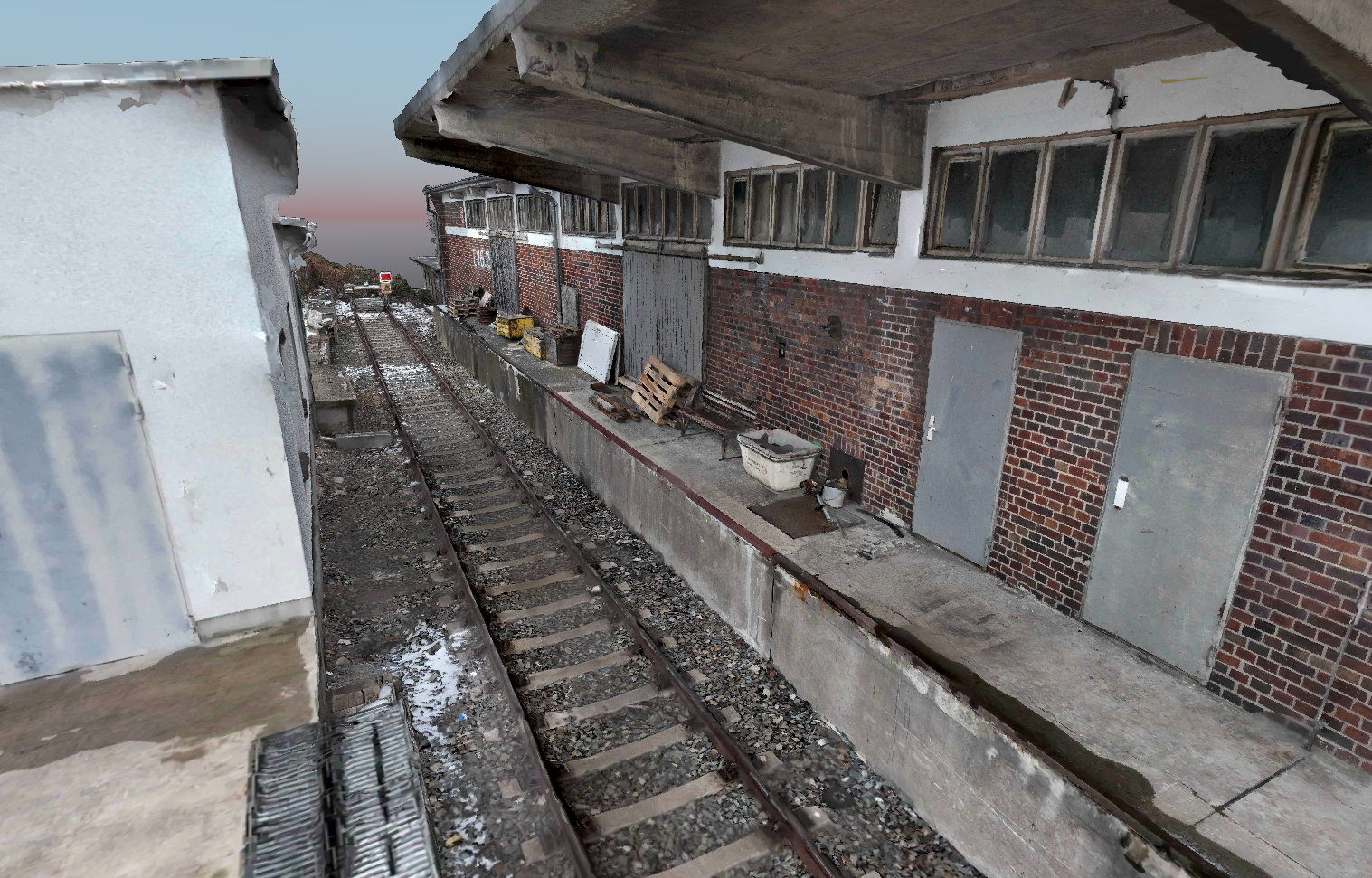

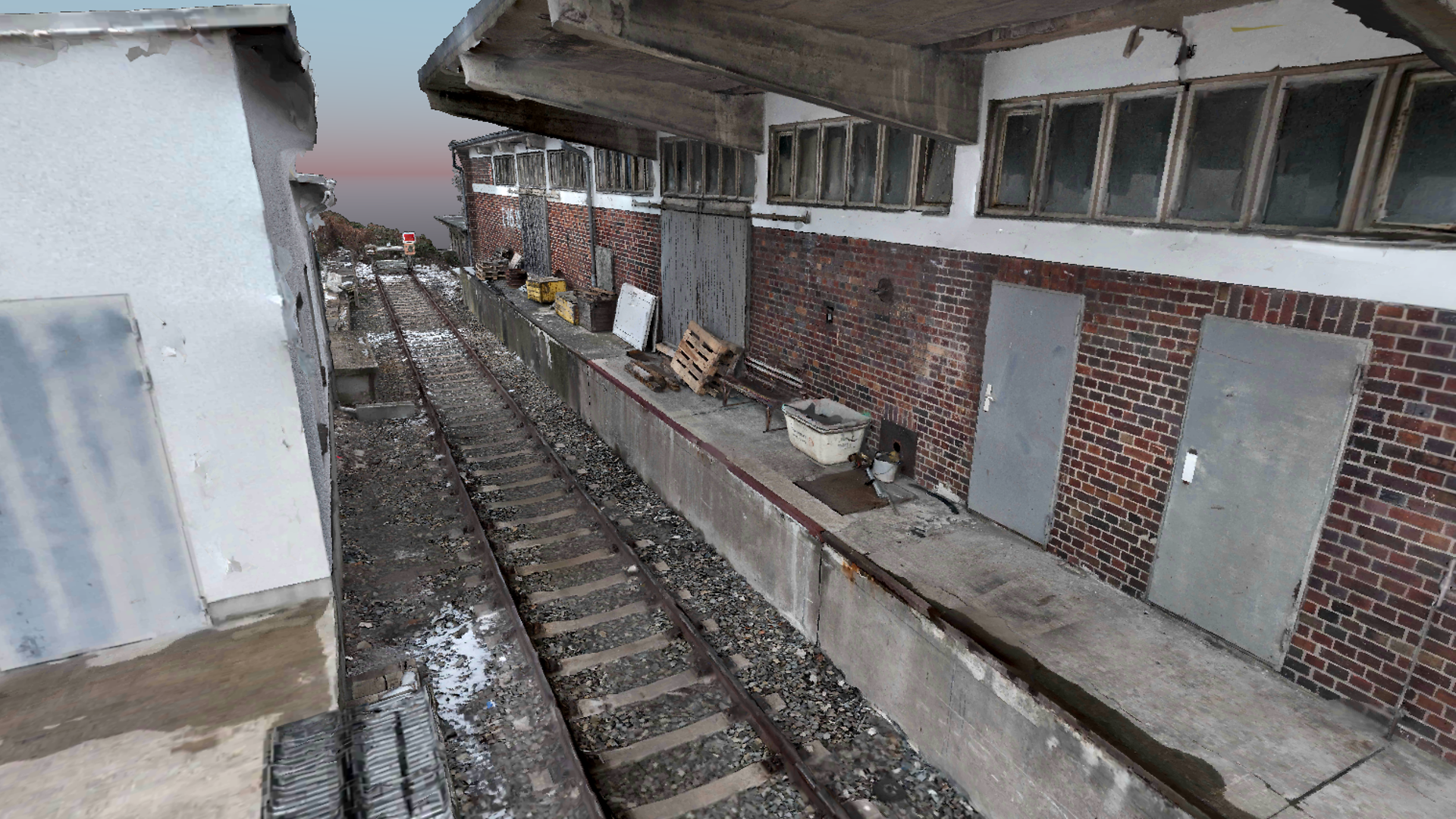

  • Close-up of a 3D point cloud of a brick building next to a track

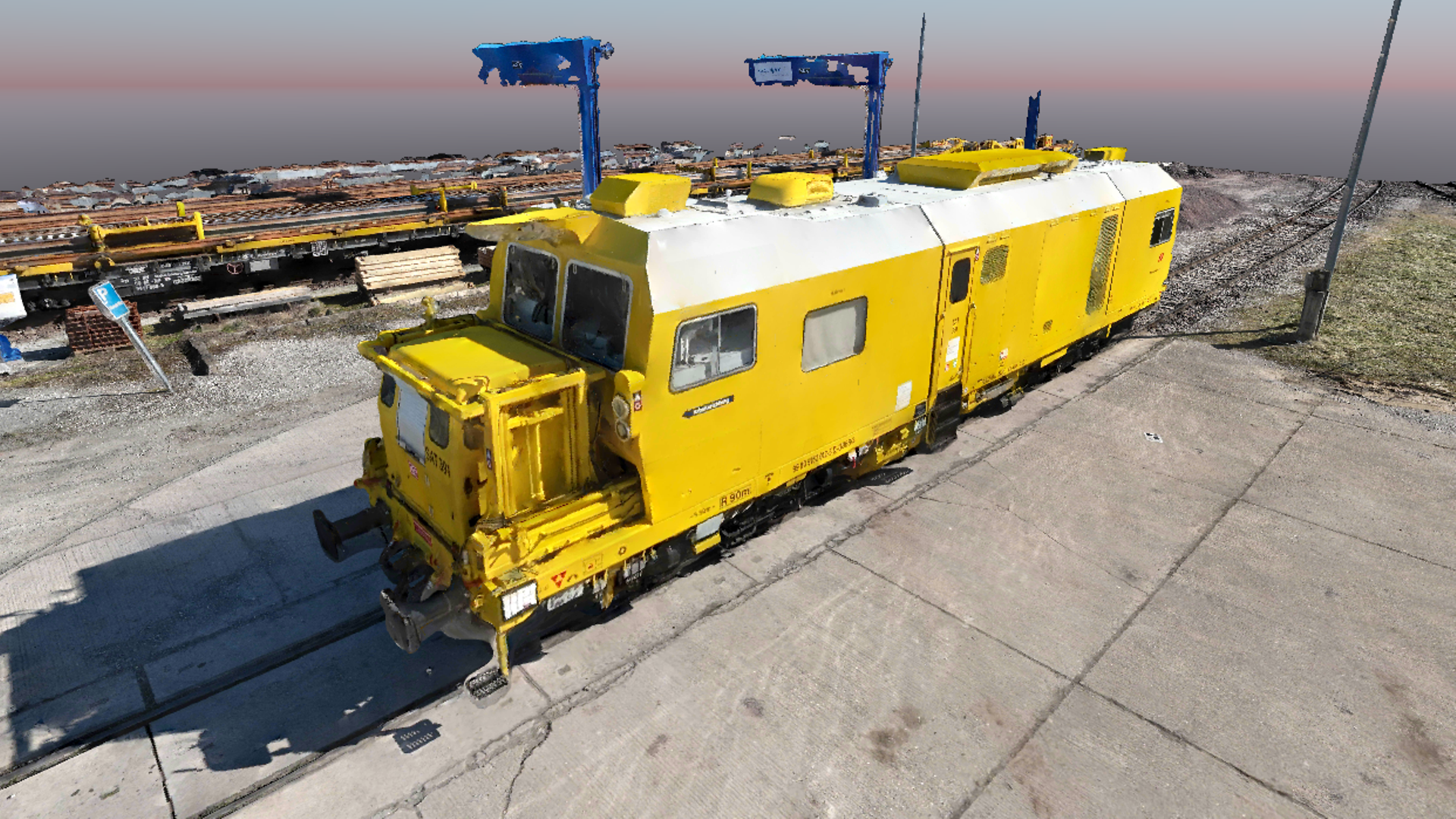

  • 3D image of a yellow work vehicle on a railroad site

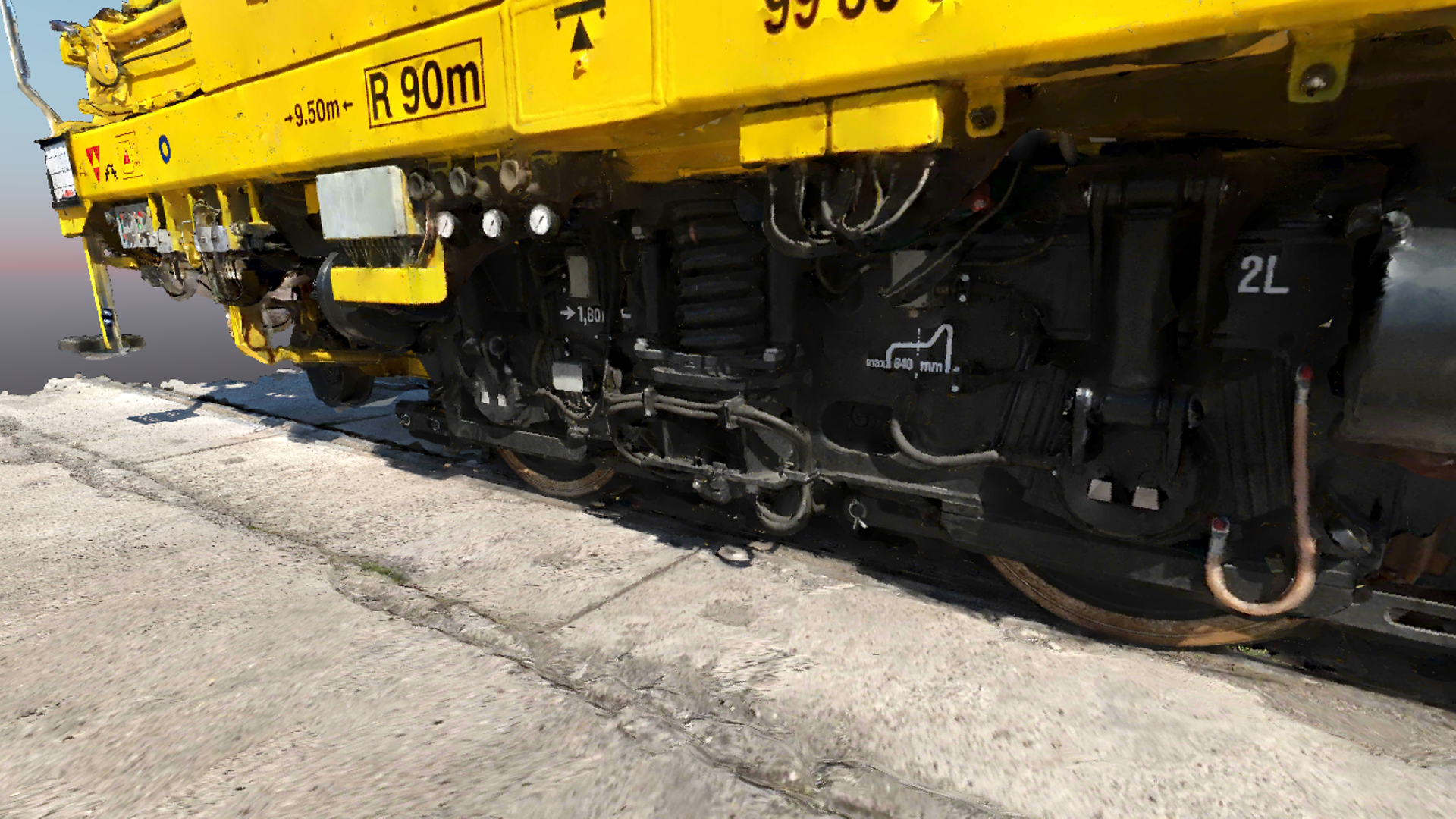

  • Close-up of a yellow work vehicle in 3D optics
  • 3D image of a DB Bahnbau Gruppe site in Hanau from a bird's eye view
    •   of 6
    End of the slider
    • 3D point cloud of tracks in Leipzig Central Station building
      Copyright: DB Bahnbau Gruppe
    • 3D representation of an area with track, work hall and container from a bird's eye view and frontal view
      Copyright: DB Bahnbau Gruppe
    • Close-up of a 3D point cloud of a brick building next to a track
      Copyright: DB Bahnbau Gruppe

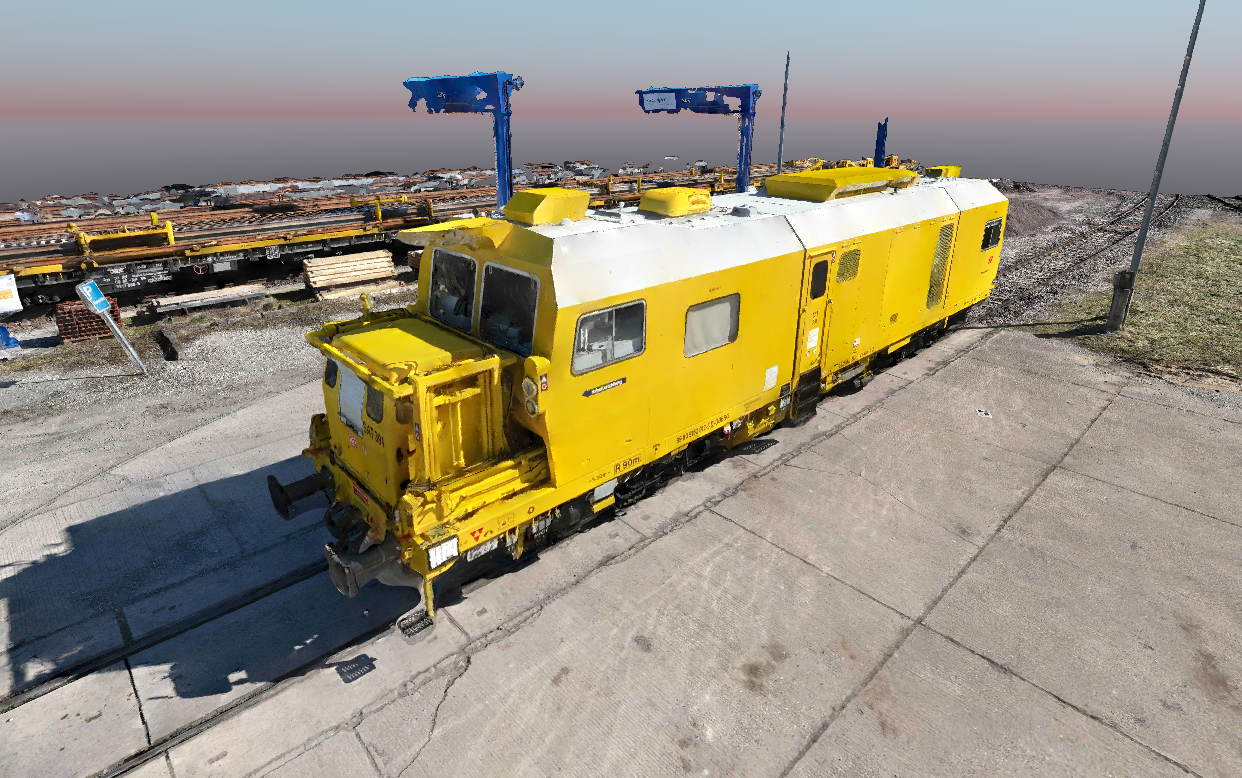

    • 3D image of a yellow work vehicle on a railroad site
      Copyright: DB Bahnbau Gruppe
    • Close-up of a yellow work vehicle in 3D optics
      Copyright: DB Bahnbau Gruppe

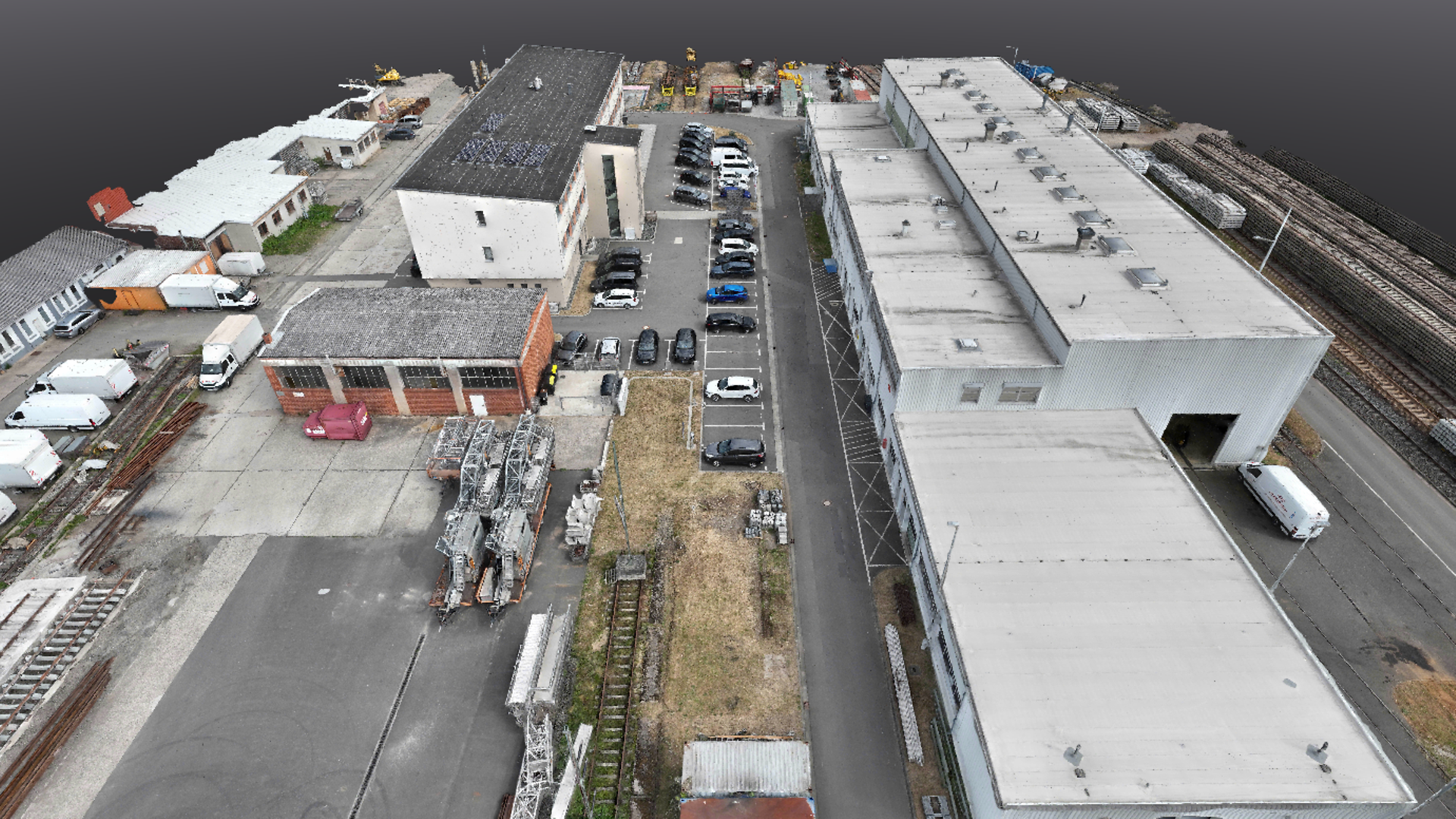

    • 3D image of a DB Bahnbau Gruppe site in Hanau from a bird's eye view
      Copyright: DB Bahnbau Gruppe
